Services

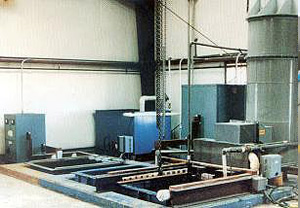

Hard Chrome Plating:
- Latest hard chrome high speed baths using High speed chemicals like Heef 25
- Environmental friendly Vessel plating technology for internal surface
- With Stringent Process control and monitoring
- High corrosion resistance Plating
- Micro hardness of chrome layer 900 HV and above which gives better wear resistance
- Surface Finish less than 0.2 Micron Ra
- Dimensional control, uniform size and thickness

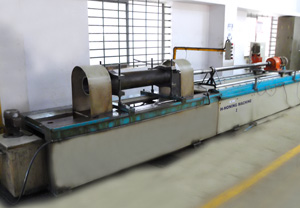

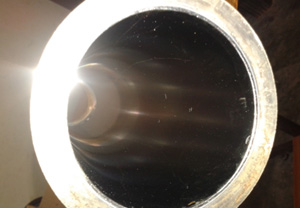

Honing and polishing:
PLC controlled Horizontal and vertical machines- Tube bore Min 50 mm and Max 400 m
- Tube Length : 300 mm to 9000 mm
- Bore tolerance H8 / as per customer specification
- Surface finish less than 0.2 micron Ra.
- Rod Min. Dia. 20mm to dia. 500mm
- Rod Length 200 mm to 9000mm
- Rod tolerance f7/ as per customer specification
- Surface finish less than 0.2 micron Ra.

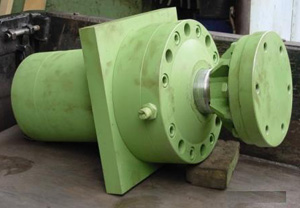

Hydraulic Cylinder Refurbishing
We undertake refurbishing of all types of hydraulic cylinders. We specialize in cylinders for Steel plants, Mining & construction equipment, material handling etc. We also design & manufacture hydraulic cylinders as per customer needs. We up-grade the existing construction of old cylinders to modern construction so as to enhance the overall performance of the cylinder.
